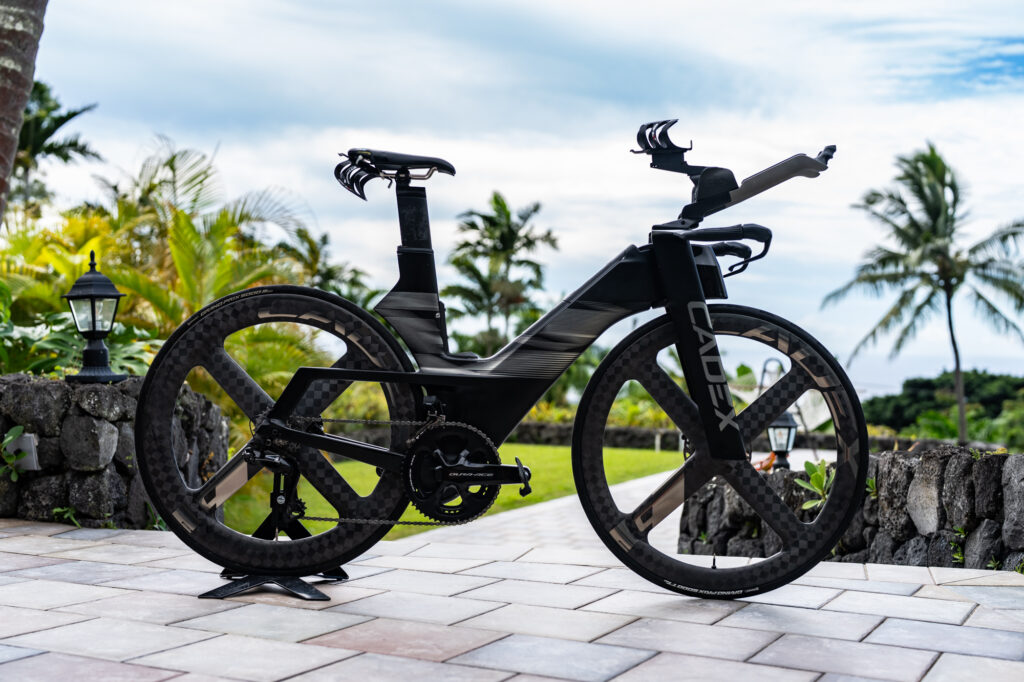

Bikes of Kona 2024: Sam Appleton’s CADEX
FRAME – CADEX Tri
Fit Coordinates:
• Pad Stack: 650mm
• Pad Reach (back of pad): 530mm
• Bar Angulation: 20 deg
• Saddle Height: 740mm
• Saddle Offset: -28mm

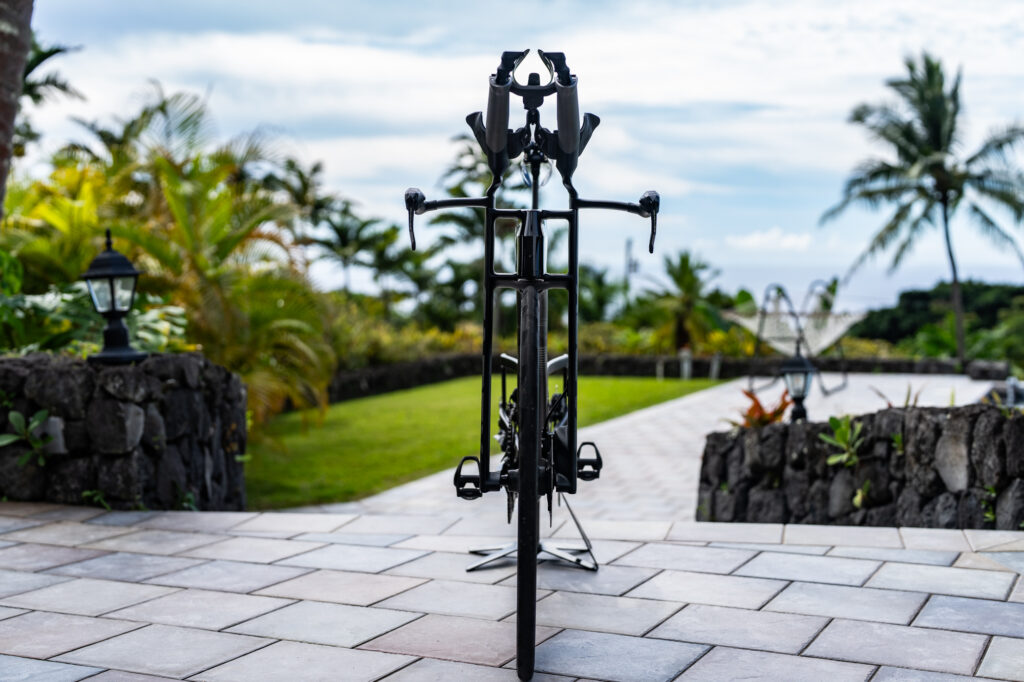

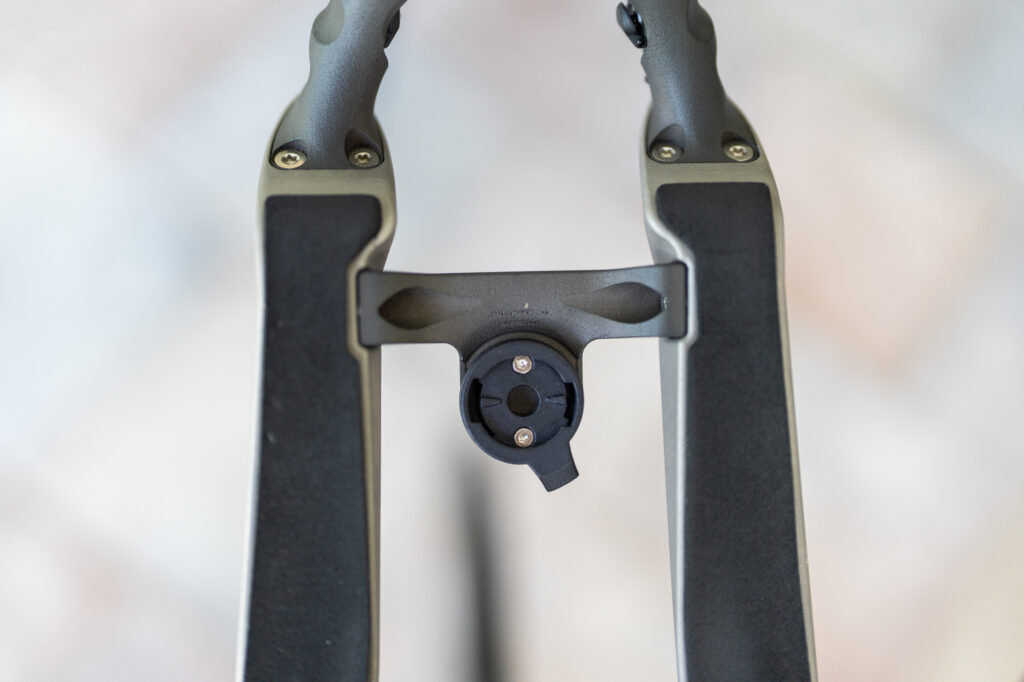

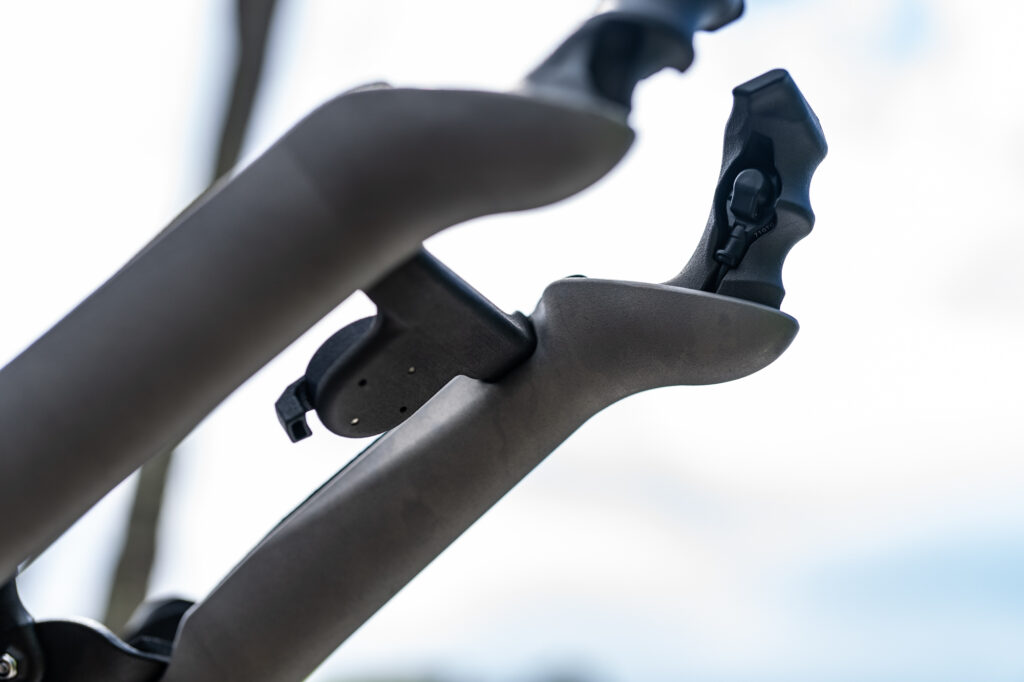

Cockpit: Sam supports himself aboard the Sync Aerobar Three system. He uses proprietary hardware to attach the bars to the basebar in order to give him extra length on the front end which is becoming more and more common to accommodate the new trend in longer reach positions.

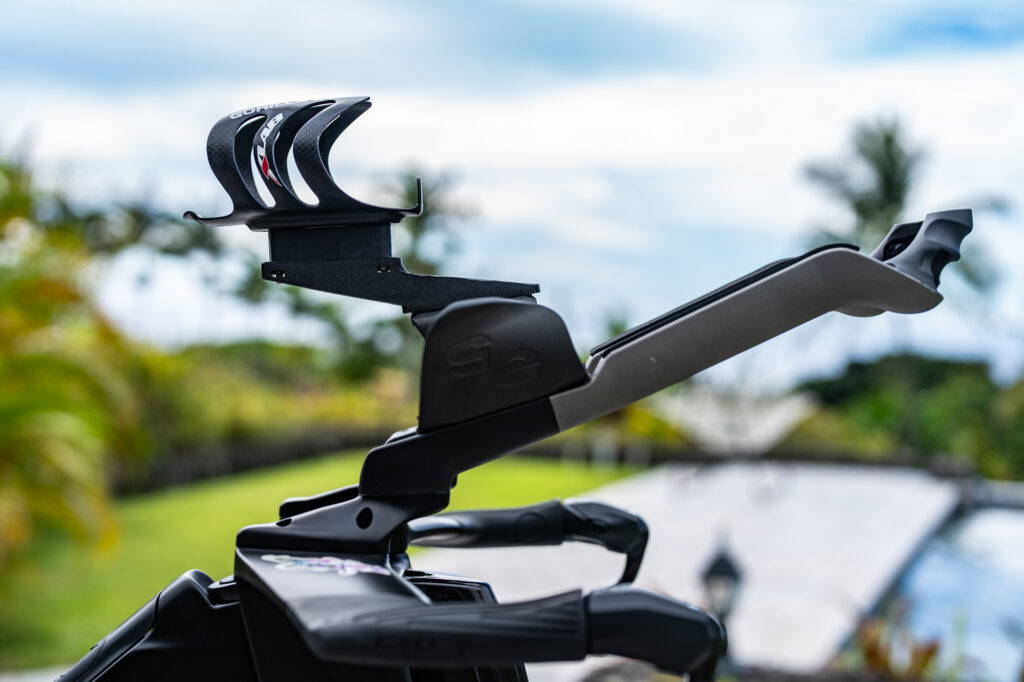

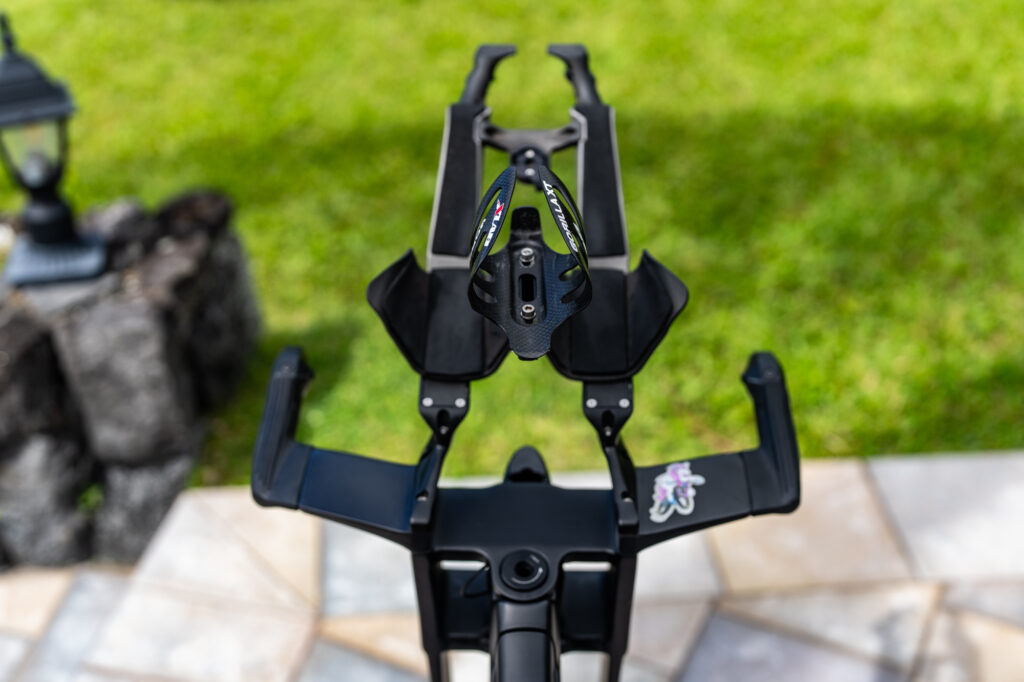

Hydration: Sam worked with Jim Manton where he did some aerodynamic field testing where he discovered placing a water bottle right behind his chin and up against his chest (a more managable version of shoving a water bottle down the front of the jersey). Based on the data, Sam had a buddy fire up his 3D printer and create a custom solution where he attaches a trusty Xlab Gorilla XT cage, which he also uses behind his ISM PN 3.0 saddle.
Sam is targeting 110 grams of carbohydrates and 760 mg of sodium per hour from Precision Hydration.

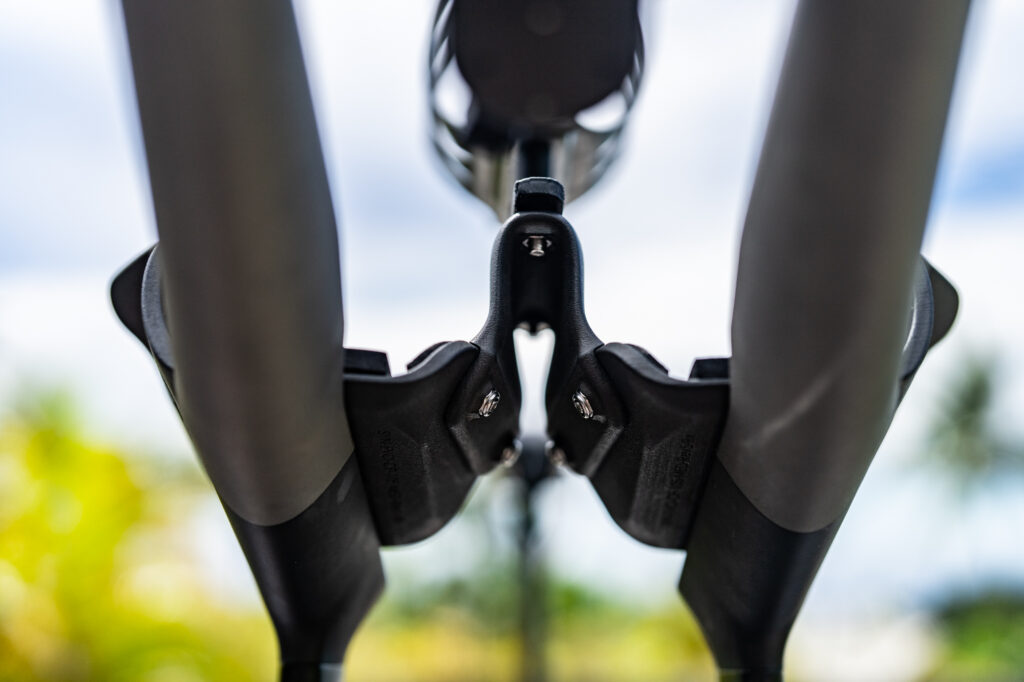

The Sync Aerobar Three front end is very clean where everything is nicely integrated and has it’s place.

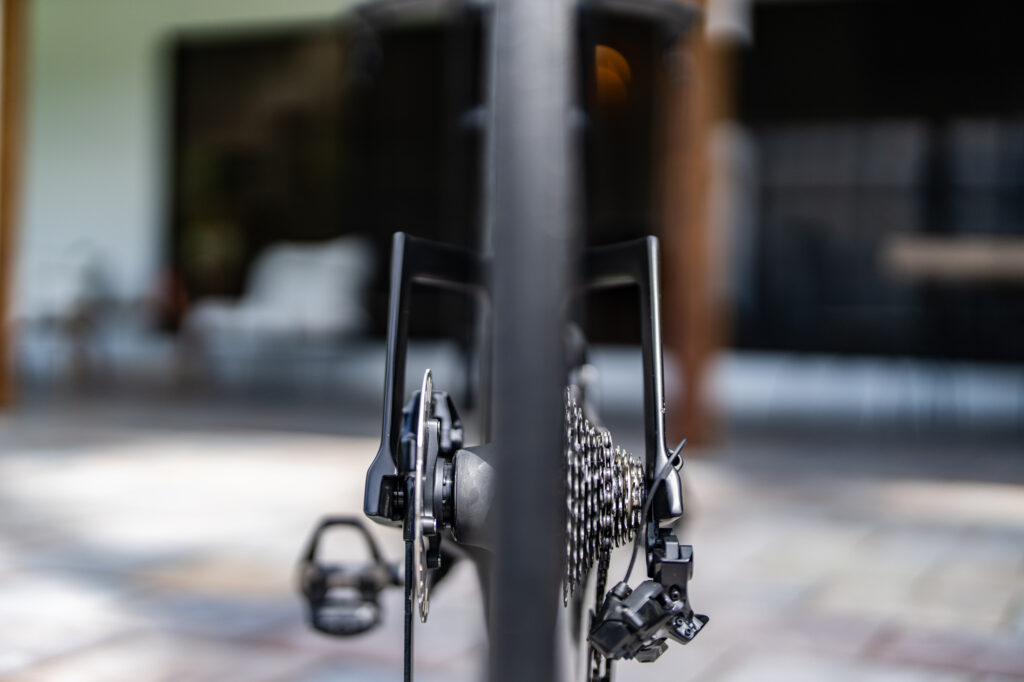

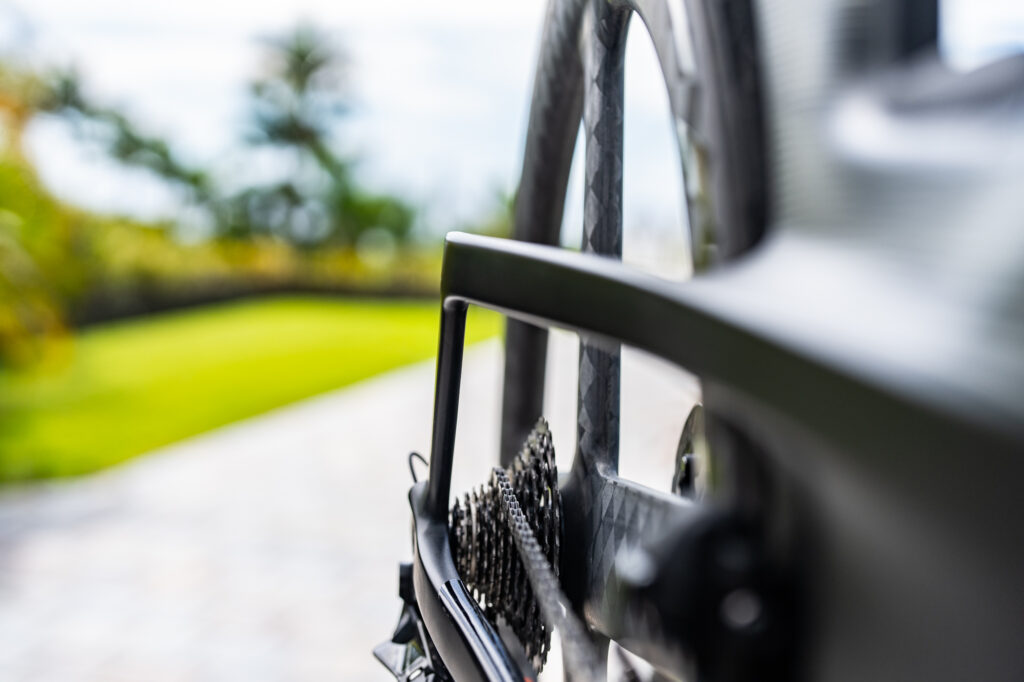

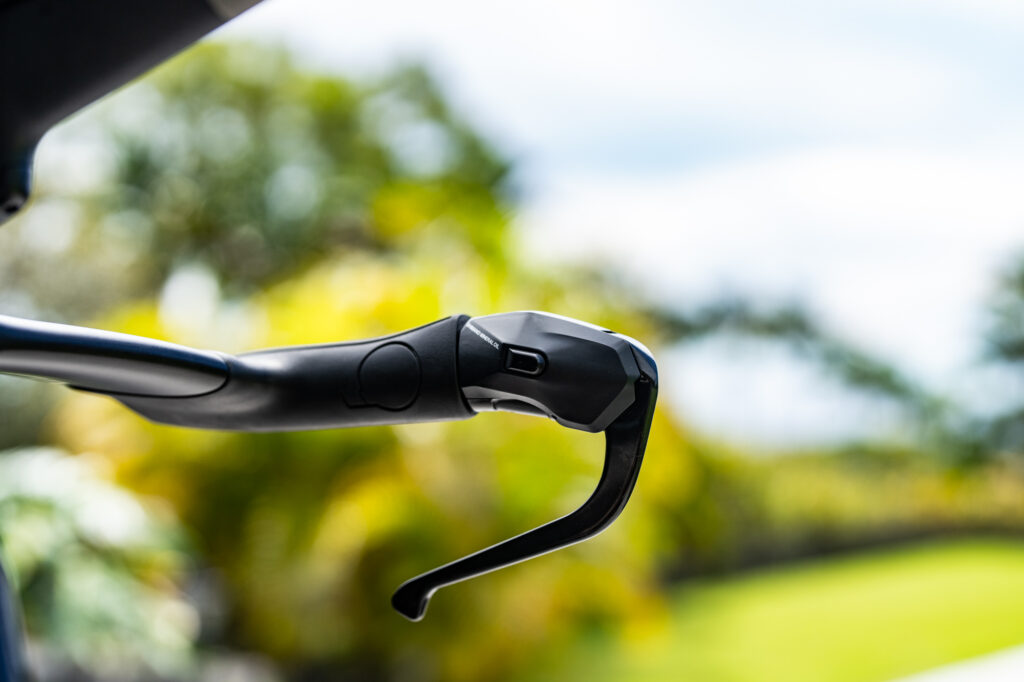

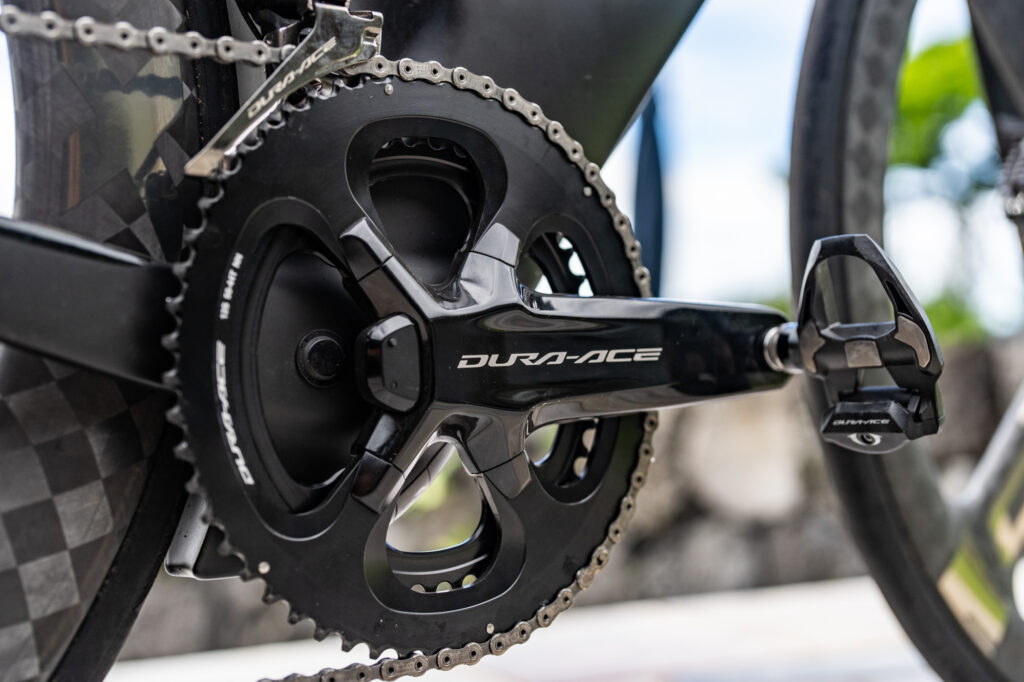

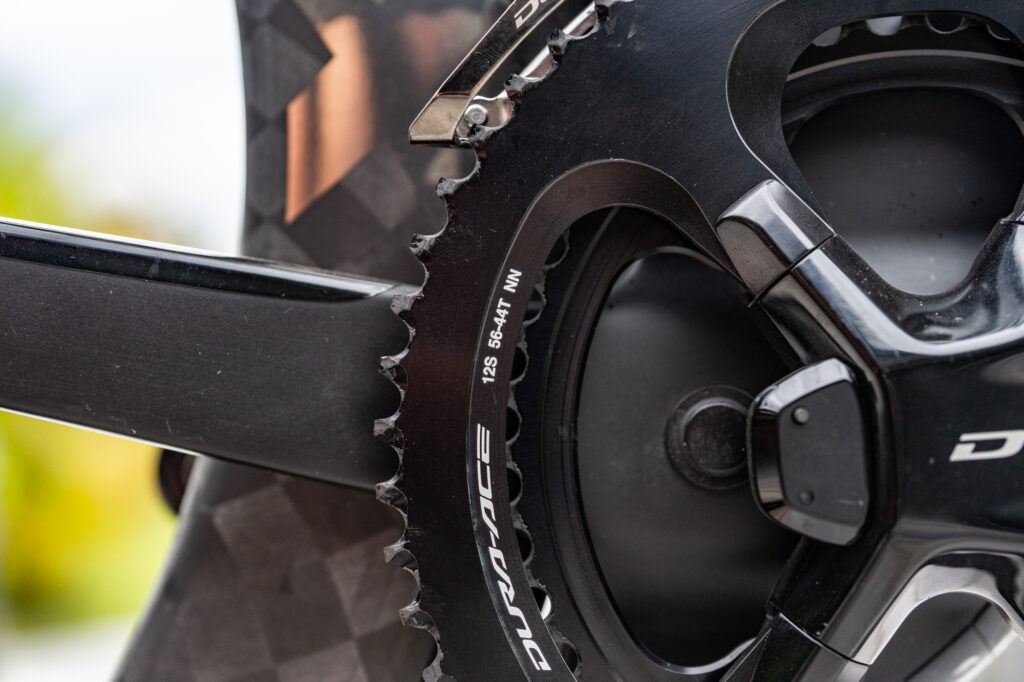

Full Shimano Drivetrain: Front chainring 56/48, 11/28 rear cassette, 165 crank arms, Shimano power meter, shifting, and pedals (yellow cleats). CermaicSpeed pulley wheels and bottom bracket.

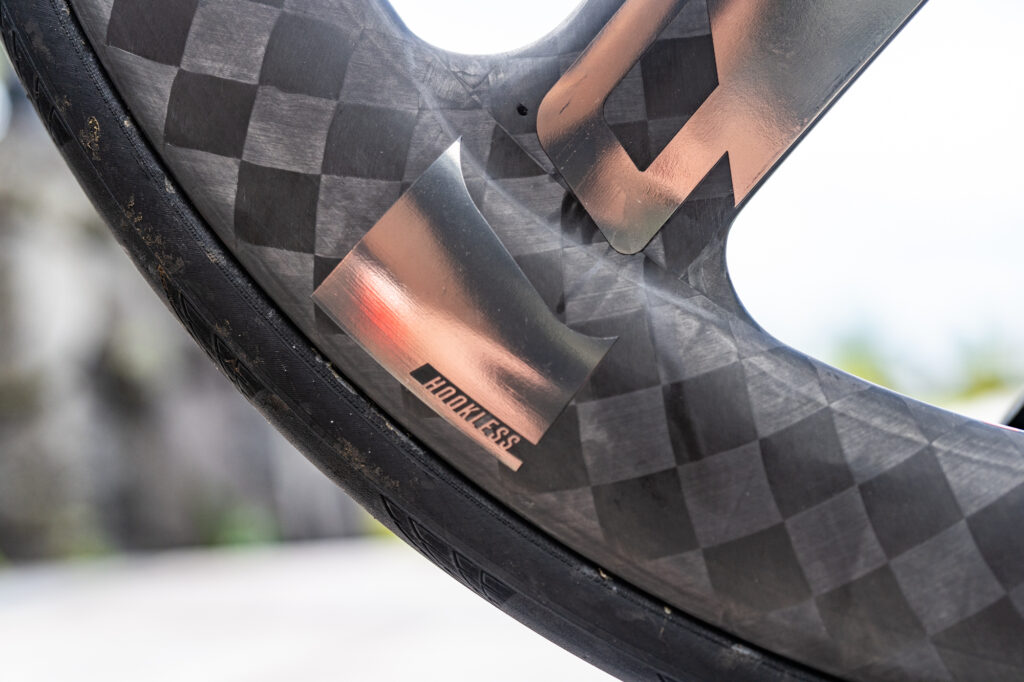

Wheels & Tires: Sam rolls on the Continental Grand Prix 5000 TT TR tire in a 25mm width, which he said is optimized for the Cadex Aero 4-Spoke wheels.
Sam mentioned that while there are faster tires out there from a rolling resistance perspective, he likes the GP 5000 for it’s balance of aero, rolling resistance, and durability. He will run these tires at 70 psi using Silca’s Ultimate sealant, commenting that most punctures in Kona are from small wires best suited for tubeless.
